3 U shape seal types and their key features

Engineers rely on three main types of U shape seal for critical sealing solutions: hydraulic U shape seal, pneumatic U-cup, and high-temperature U-cups. Each features a unique u-shaped profile with a double lip design that deliverslow breakaway force and high pressure capacity. Typical materials include EPDM, silicone, and polyurethane, supporting superior performance in demanding environments. Careful material selection ensures reliable seals and optimal sealing solutions for specific applications.

Key Takeaways

• Hydraulic U shape seals excel in high-pressure environments, using materials like polyurethane and NBR for durability and performance.

• Pneumatic U-cups are ideal for dynamic applications, offering flexibility and low friction, with materials like EPDM providing excellent weather resistance.

• High-temperature U-cups maintain integrity under extreme heat, utilizing silicone and Viton for reliable performance in demanding conditions.

• Choosing the right seal material is crucial for optimal performance; consider factors like pressure, temperature, and environmental exposure.

• Regular inspection and maintenance of U shape seals can significantly extend their lifespan, ensuring reliable operation in various applications.

Hydraulic U Shape Seal

Materials

Hydraulic U shape seals rely on advanced materials to deliver exceptional performance in demanding environments. Polyurethane stands out for its excellent wear resistance and ability to maintain seal integrity under high pressure.NBR offers superior oil resistance, making it ideal for hydraulic sealing system applications. Viton FKM provides outstanding heat stability and chemical compatibility, ensuring loaded u-cups perform reliably in aggressive conditions. Material selection plays a critical role in achieving optimal performance and extending the lifespan of rod seal components. The table below compares the most common materials used in hydraulic u-cups:

Features

Hydraulic u-cups feature a unique U-shaped cross-section that delivers superior sealing in high pressure environments. The double lip design creates an additional barrier, enhancing seal integrity and preventing leakage. Loaded u-cups incorporate energizers to maintain consistent sealing force, even during dynamic movement. The secondary lip traps fluid, increasing lubrication and protecting against contamination. Flexure of the elastomer resists spiraling in the groove, ensuring rod seal stability. These features combine to provide exceptional performance and long-lasting seal integrity in bi-directional rod seal applications. The following table highlightsthe primary design features that set hydraulic u-cups apart:

Tip: Double lip loaded u-cups retain lubricant better than single lip seals and offer superior protection against external contaminants.

Applications

Hydraulic u-cups serve a vital role in industrial applications that demand robust sealing under high pressure. Power transmission systems, oil refineries, off-highway equipment, manufacturing, and automotive sectors all depend on loaded u-cups for reliable rod seal performance. These seals maintain seal integrity in bi-directional rod seal configurations, supporting superior sealing and optimal performance. In well-maintained hydraulic sealing systems, loaded u-cupscan last from 1 to 15 years, depending on maintenance and material selection. Industrial applications benefit from the exceptional performance and durability of hydraulic u-cups, ensuring seal integrity and reducing downtime.

Pneumatic U-cup

Materials

Pneumatic u-cups rely on advanced materials to deliver reliable seal integrity and consistent performance in dynamic pneumatic systems. Material selection plays a crucial role in optimizing rod seal function and extending the lifespan of seals. Common materials include EPDM, Neoprene, TPE, and TPV. EPDM offers excellent UV resistance, ozone resistance, and weather durability, making it ideal for outdoor applications. Neoprene provides flame retardancy and moderate chemical resistance, supporting seals in fire doors and marine environments. TPE and TPV are recyclable and allow co-extrusion with rigid plastics, which benefits car trims and appliance gaskets.The table below summarizes key properties and applications for pneumatic u-cup materials:

Features

Pneumatic u-cups feature a flexible u-shaped profile and double lip design, which ensures seal integrity during rapid movement and low pressure operation. These seals excel in dynamic rod seal applications, providing low friction and minimizing wear. Polyurethane u-cups deliver excellent wear resistance and tear strength, while PTFE u-cups offer ultra-low friction and chemical resistance. Fabric-reinforced loaded u-cups enhance strength and wear resistance for demanding environments. The flexibility of pneumatic u-cups allows them to adapt to groove variations and maintain seal integrity over time. Weather resistance is a key advantage, with EPDM and FKM materials providing proven aging and ozone resistance for outdoor applications. Cost-effectiveness is another benefit, as pneumatic u-cups offera wide price range from $0.01 to $20, with bulk purchases reducing costs. Suppliers consistently receive high ratings, reflecting positive customer experiences and reliable seal performance.

Note: Pneumatic u-cups maintain seal integrity and reduce maintenance costs, making them a preferred choice for automation and robotics.

Applications

Pneumatic u-cups serve a wide range of applications in industrial automation, robotics, and material handling. These seals support pick and place tasks, packaging, conveying, and filling equipment. Pneumatic u-cupsoperate efficiently at pressures up to 5,000 PSI for urethane designs andup to 2,000 PSI for UA-S profiles. Their flexibility and weather resistance make them suitable for outdoor installations and environments with temperature fluctuations. Loaded u-cups provide reliable rod seal performance, speed, and force capabilities for automation systems. Pneumatic u-cups deliver lower installation and maintenance costs, supporting efficient operation and long-term seal integrity in diverse applications.

• Material handling

• Packaging

• Conveying

• Filling equipment

• Robotics

High-Temperature U-cups

Materials

High-temperature u-cups rely on advanced materials to maintain seal integrity in high-pressure environments. Silicone and Viton FKM stand out for their ability to withstand extreme temperatures. Silicone u-cups operate reliably up to480°F, while Viton FKM loaded u-cups can handle short-term exposure up to 527°F and continuous use at 400°F. These materials resist thermal degradation and chemical attack, ensuring long-term durability and consistent rod seal performance. PTFE-based loaded u-cups offer even greater temperature resistance, performing in environments up to 575°F without losing sealing capability. The following table highlights the maximum temperature ratings for common materials used in high-temperature u-cups:

Features

Loaded u-cups designed for high-pressure environments deliver exceptional stability and durability. The double lip profile ensures a secure rod seal, even during rapid temperature changes.AFLAS® loaded u-cups exhibit outstanding resistance to heat, steam, and chemicals, which is crucial for maintaining seal integrity during thermal cycling. Their flexible molecular structure prevents embrittlement and surface cracking, supporting reliable seal performance in dynamic conditions. PTFE-based loaded u-cups resist mechanical stress and maintain dimensional stability, making them ideal for high-pressure environments. The compression set characteristics of these seals allow them to recover shape after repeated heating and cooling cycles, preserving rod seal integrity and extending service life.

Tip: Loaded u-cups with silicone or Viton FKM materials provide superior durability and sealing integrity in high-pressure environments, even when exposed to aggressive chemicals and fluctuating temperatures.

Applications

High-temperature u-cups serve critical roles in demanding industrial applications. Engineers use these seals in pneumatic and hydraulic systems operating in high-pressure environments, such as industrial ovens and sterilization equipment. Loaded u-cups perform reliably atoperating temperatures up to 500°F, with pressure ratings around 90 PSI and stroke lengths of 3 inches. These seals withstand cycle frequencies of 2-4 cycles per day, maintaining rod seal integrity and durability. PTFE-based loaded u-cups excel in extreme conditions, offering unmatched performance and longevity. Common applications include:

• Industrial ovens and autoclaves

• Sterilization and cleaning-in-place (CIP) systems

• High-pressure pneumatic and hydraulic equipment

• Food processing machinery

• Chemical processing plants

Loaded u-cups deliver consistent seal integrity, durability, and performance in high-pressure environments, making them essential for industries that demand reliable operation under extreme conditions.

U Shape Seal Comparison Table

Selecting the right u shape seal depends on understanding how each type performs under high pressure, temperature extremes, and dynamic movement. Technical buyers often compare seals based on material, working conditions, and lifespan. The table below summarizes the main features and materials for hydraulic, pneumatic, and high-temperature u shape seal options.

Tip: Hydraulic u shape seal designs excel in high pressure environments, while high-temperature seals maintain integrity under extreme heat. Pneumatic seals offer flexibility and cost savings for dynamic, lower pressure systems.

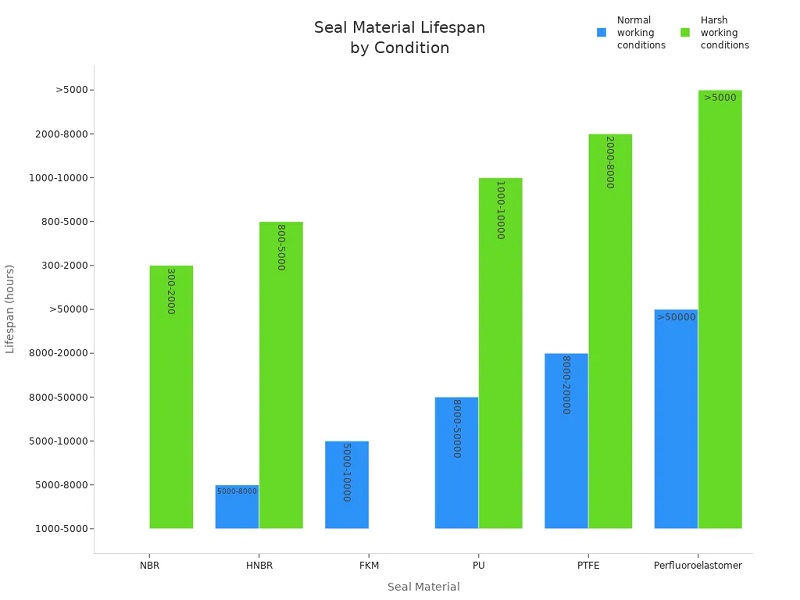

The lifespan of each u shape seal depends on the material and operating conditions. Polyurethane seals in hydraulic systems can last up to 50,000 hours under normal conditions. Pneumatic seals made from EPDM or Neoprene typically last between 1,000 and 8,000 hours. High-temperature seals using PTFE or Viton maintain performance in harsh environments, with lifespans up to 20,000 hours.

Technical buyers should match the u shape seal type to their application’s pressure, temperature, and movement requirements. Hydraulic seals provide robust sealing for high pressure systems. Pneumatic seals deliver reliable performance in automation and robotics. High-temperature seals ensure stability in extreme heat and chemical exposure.

Hydraulic U shape seals deliver robust performance in high pressure environments, while pneumatic seals excel in dynamic, lower pressure systems. High-temperature seals maintain stability under extreme heat and chemical exposure. Material choice impacts seal reliability, especially when facinghigh pressure, UV, or weather extremes. The table below highlightskey selection factors:

For optimal high pressure sealing, avoid common mistakes like improper installation or choosing the wrong material. Select MingYu for reliable U shape seal solutions.

FAQ

What is the main advantage of a double lip U shape seal?

The double lip design creates two sealing surfaces. This feature improves leak prevention and increases protection against contaminants. Engineers prefer double lip seals for high-pressure and dynamic applications.

Which material should they choose for outdoor pneumatic sealing?

EPDM offers excellent resistance to UV rays, ozone, and weather. It performs well in outdoor environments. Neoprene also provides durability and flame retardancy for specialized uses.

How does temperature affect U shape seal performance?

High temperatures require seals made from silicone, Viton, or PTFE. These materials maintain integrity and prevent seal failure.

Can U shape seals be customized for specific applications?

Manufacturers offer custom sizes, profiles, and materials. Engineers can specify requirements for pressure, temperature, and chemical compatibility. Customization ensures optimal sealing and longer service life.

How often should U shape seals be replaced?

Replacement intervals depend on operating conditions and material choice. Hydraulic seals may last several years with proper maintenance. Pneumatic and high-temperature seals require inspection every 1,000 to 20,000 hours.
