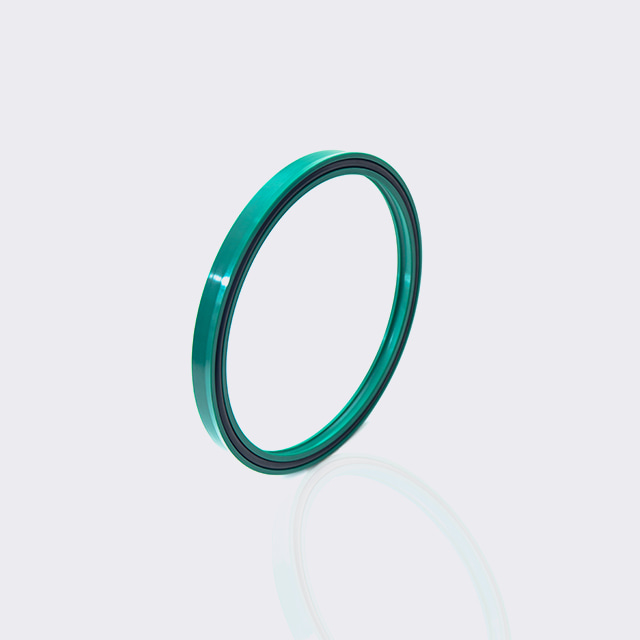

MBA Piston Rod Seal

The MBA piston rod seal is an improved lip seal that combines the benefits of a highly elastic O-ring and wear-resistant lip material. The O-ring in the oil groove ensures proper pre-compression under low pressure or vacuum, maintaining good sealing performance. Even with wear, it keeps the necessary pre-compression. As system pressure increases, the O-ring deforms and presses the sealing lip tightly around the piston rod, ensuring excellent sealing. It is mainly used in hydraulic systems like plungers, piston rods, telescopic cylinders, air drills, forging machines, and walking equipment.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Specifications

Application Scenario

Ordering Information

Core Feature

● Strong Wear Resistance

Performs well under high-frequency movement and harsh conditions, extending product life.

● Insensitive to Vibration and Pressure Peaks

Seals reliably even in vibrating and fluctuating pressure environments.

● High Extrusion Resistance

Withstands high pressure and extreme load changes.

● Ideal Sealing at No Load and Low Temperatures

Seals perfectly even in no-load or very cold conditions.

● Suitable for Harsh Conditions

Designed for tough environments, ensuring long-lasting performance.

● Easy Installation

Simple and efficient installation process, improving assembly speed.

Material composition

● Polyurethane(PU) + Nitrile Rubber (NBR)

● Working Pressure: ≤ 350 bar

● Operating Temperature: -30 to +100°C

● Surface Speed: ≤ 0.5 m/s

Hydraulic Systems

Seals hydraulic cylinders and piston rods for stable operation.

AP-1

Construction Machinery

Used in heavy equipment like excavators and bulldozers under high pressure.

Application

Mining Equipment

Offers pressure and wear resistance in mining drills and excavation machines.

Application

Industrial Automation

Ensures sealing in automated machinery.

Application

Automotive Industry

Provides leak protection in brake and steering systems.

Application

MBA Piston Rod Seal is identified using an order number.

Example: MBA-1826 PU+NBR

● Order Part Number：MBA

● Rod Diameter and Groove Diameter：1826

● Material：PU+NBR

(Special specifications can be customized according to customer requirements.)

Structure Display

Product Description

Technical Specifications

Application Scenario

Ordering Information

OUR ADVANTAGES

Why Choose Mingyu

Mingyu Sealing Technology (Taicang) Co., Ltd has been established in 1995, the executive member of Chinese hydraulic pneumatic sealing industrial association, the well-known private technology enterprise in Jiangsu. The company is specialized in the production, development and marketing for rubber or plastic hydraulic sealing.

Sealing Excellence Since 1995

Nearly 30 Years of Experience in Supplying Sealing Parts to Global Leading Equipment Manufacturers.

Superior Supply Chain Management

The IATF 16949-2009 and ISO 9001-2008 has been qualified, enabling us to meet the requirements of customers and their supply chain requirements.

Offer Customization Service for Non-standard Parts

Professional technology will carry out preliminary planning according to the customer's working conditions.
