Step Ring for Holes (GSD)

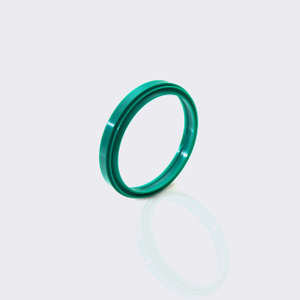

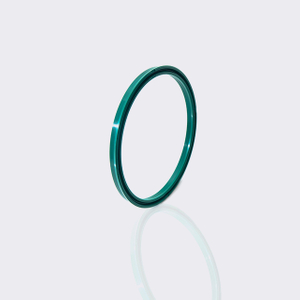

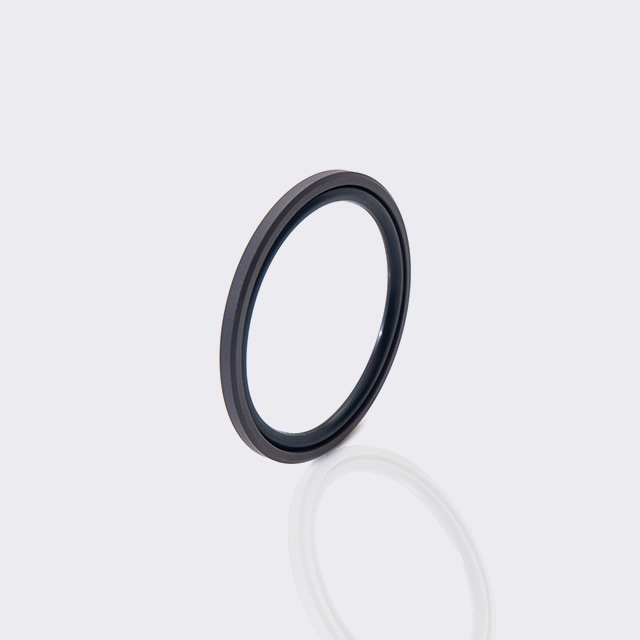

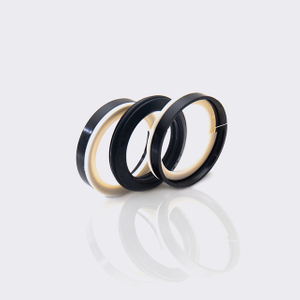

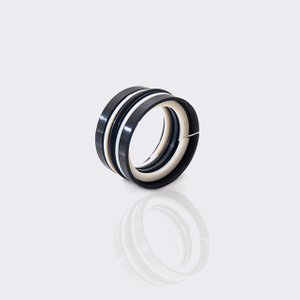

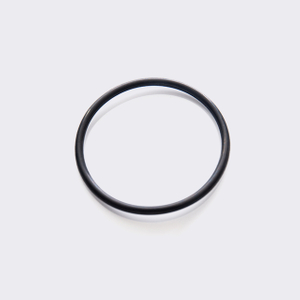

The GSD step ring consists of a wear-resistant PTFE ring and an O-ring. The O-ring seals at the bottom of the groove and provides preload to the PTFE ring, compensating for its wear. It is used for unidirectional sealing in hydraulic cylinder pistons and typically paired with a guide ring. For hole diameters smaller than 40 mm, a split groove design is recommended.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Specifications

Application Scenario

Ordering Information

Core Feature

● Step Design

Adapts to different hole sizes for better sealing.

● High Pressure Resistance

Works well in high-pressure and tough conditions.

● Self-Regulating

Adjusts sealing pressure automatically for stable performance.

● Wear Resistance

Made of durable materials, lasting longer in high-friction environments.

Material composition

Under normal conditions, a combination of polytetrafluoroethylene (PTFE) and nitrile rubber (NBR) is used. In special cases, fluororubber (FKM) may be selected.

● Working Pressure: 0-40 MPa

● Reciprocating Speed: ≤ 5 m/s

● Operating Temperature:

Nitrile Rubber (NBR): -30 to +120°C

Fluororubber (FKM): -20 to +200°C

● Working Media: Hydraulic oil, gas, water (fluororubber should be used for phosphate ester-based hydraulic oil).

Design Standards

This series complies with the ISO 7425/1 standard.

Hydraulic Systems

Used in hydraulic cylinders, pumps, and pipeline joints for effective sealing.

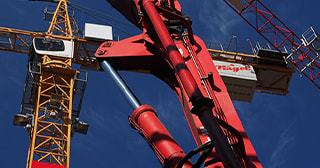

AP-1

Mechanical Equipment

Applied in gearboxes, pumps, turbines, and other systems needing strong sealing.

AP-3

Step Ring for Holes (GSD) is identified using an order number.

Example: GSD-0080-PTFE+NBR

● Order Part Number：GSD

● Hole Diameter *10：0080

● Material：PTFE+NBR

(Special specifications can be customized according to customer requirements.)

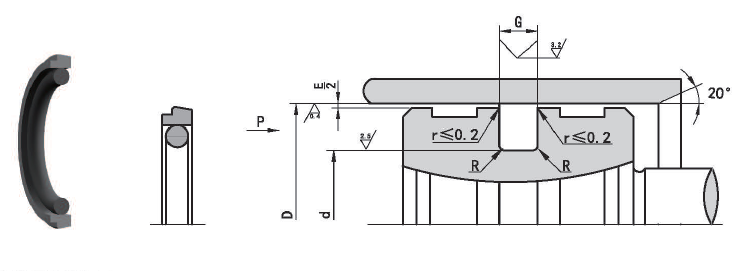

Structure Display

Product Description

Technical Specifications

Application Scenario

Ordering Information
