A shaft seal performs two jobs that directly oppose each other: it must keep lubricant inside your equipment while allowing a rotating shaft to move freely. Get this balance wrong, and you face one of two consequences—fluid leaks onto your factory floor, or friction generates enough heat to destroy the seal in weeks. Neither outcome is acceptable. Choosing the right shaft seal isn't about finding a part that fits a catalogue dimension. It is about understanding your specific operating conditions and matching them to the correct seal type, material, and design. This guide walks you through every critical factor, from temperature limits to shaft surface finish, so you can make a confident, informed selection.
• A shaft seal is a dynamic seal that retains lubricant and excludes contaminants where a shaft rotates through a housing
• Selecting the right shaft seal depends on five core operating parameters: temperature, pressure, shaft speed, fluid compatibility, and shaft surface condition
• Material choice determines how your shaft seal performs—NBR for general-purpose oil sealing, FKM for high heat and chemicals, PTFE for low friction and extreme conditions
• Most shaft seal failures result from incorrect installation, material incompatibility, or operating beyond the seal's design limits
• A quality shaft seal supplier provides technical support and material expertise, not just off-the-shelf parts

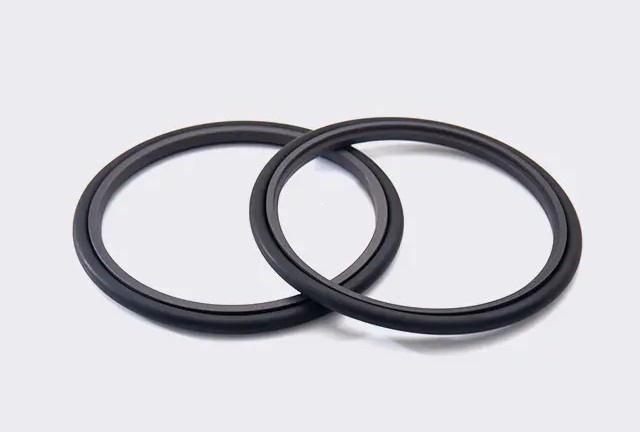

A shaft seal is a component installed between a rotating shaft and a stationary housing. Its primary job is to form a dynamic barrier—flexible enough to allow rotation, but tight enough to prevent fluid from escaping.
The working principle is elegant but precise. The seal's flexible lip presses against the rotating shaft with a carefully controlled radial force, often augmented by a garter spring that maintains contact as the lip wears. As the shaft turns, a microscopic film of lubricant forms between the lip and the shaft surface—typically only a few micrometres thick. This film prevents direct metal-to-rubber contact, reducing friction while simultaneously blocking leakage.
A well-engineered shaft seal actually pumps a tiny amount of fluid back toward the oil side during rotation, creating a self-reinforcing sealing effect. This is why material selection and precision manufacturing matter so much: small deviations in lip geometry or surface finish can break this hydrodynamic balance and cause premature failure.
Every selection decision starts with quantifying your operating conditions. Here are the parameters that will determine your shaft seal choice:
Temperature affects everything about seal performance—material hardness, compression set, chemical resistance, and wear life. Elastomers soften at high temperatures and become brittle at low temperatures, both of which lead to failure.
Continuous vs intermittent: Consider both normal operating temperature and peak excursions. A shaft seal that withstands 150°C for an hour may fail after weeks at 120°C.
Material limits: Standard NBR works from -40°C to 120°C; FKM reaches 200°C; PTFE performs from -200°C to 260°C. Choose based on your actual range, not worst-case extremes.
Speed is measured as surface velocity (metres per second), not simply RPM. Surface speed = π × shaft diameter × RPM ÷ 60. A small-diameter shaft at high RPM can have lower surface speed than a large-diameter shaft at moderate RPM.
| Seal Type | Typical Surface Speed Range |
|---|---|
| Elastomer lip seals (NBR/FKM) | 0.1 – 8 m/s |
| PTFE-based lip seals | 1 – 25 m/s |
| Face seals (mechanical) | Up to 30 – 50 m/s |
At speeds exceeding 8 m/s, frictional heating becomes significant and rubber-based seals require special cooling designs or a switch to PTFE materials.
Most standard lip-type shaft seals handle only very low pressures—typically 0.5 bar or less. Higher pressure pushes the seal lip away from the shaft, creating a leak path.
Low pressure (<0.5 bar): Standard lip seals are acceptable.
Medium pressure (0.5–10 bar): PTFE seals with spring energizers or specialty designs are required.
High pressure (>10 bar): Face seals or mechanical seals become necessary.
Never assume a shaft seal can handle system pressure just because it fits the dimensions—pressure capability is a design feature, not a universal property.
The fluid you are sealing must be chemically compatible with the seal material. Common mismatches include:
NBR: Excellent with mineral oils and hydraulic fluids; fails rapidly with brake fluids, ketones, or ozone
FKM: Excellent with high-temperature oils, fuels, and aggressive chemicals; expensive for simple applications
PTFE: Compatible with virtually everything—acids, bases, solvents, fuels. Low friction but requires energizing for effective sealing
Material choice is the single most important decision in shaft seal selection. Use this table to compare options side by side.
| Material | Temperature Range | Key Strengths | Best Applications | Limitations |
|---|---|---|---|---|
| Nitrile (NBR) | -40°C to +120°C | Excellent oil resistance, low cost, good abrasion resistance | General hydraulic seals, automotive engines, moderate conditions | Poor high-temperature resistance, ozone degrades quickly |
| Fluorocarbon (FKM) | -20°C to +200°C | Outstanding heat and chemical resistance; resists oils, fuels, aggressive fluids | High-temperature hydraulics, chemical pumps, aerospace, automotive fuel systems | Higher cost, less low-temperature flexibility |
| PTFE (filled options) | -200°C to +260°C | Very low friction, excellent chemical resistance, wide temperature range | High-speed rotary seals, aggressive chemical environments, extreme temperatures | Requires spring energizer, less elastic than rubber |
| EPDM | -50°C to +150°C | Excellent weather, ozone, and water resistance | Outdoor applications, water pumps, brake systems | Poor oil and hydrocarbon resistance |
| Silicone (VMQ) | -60°C to +200°C | Excellent extreme-temperature flexibility | Wide temperature swings, medical/food applications (specific grades) | Poor tear strength, low abrasion resistance |
When in doubt between NBR and FKM, remember: FKM costs more but lasts longer in hot or chemically aggressive environments. PTFE is the ultimate choice when neither rubber can meet your temperature or friction requirements.
Even the perfect shaft seal will fail quickly if the shaft itself is not prepared correctly. Two surface characteristics dominate seal life:
A shaft that is too rough abrades the seal lip rapidly. A shaft that is too smooth cannot retain sufficient lubricant film, causing dry running and heat generation. The industry standard for dynamic sealing applications is Ra 0.2 to 0.8 μm (approximately 8–32 microinches).
A harder shaft surface resists wear and extends shaft seal life significantly. For abrasive environments, a shaft hardness of Rockwell C 60 is recommended. A minimum of Rockwell C 30 is typical for standard applications.
Inspect shafts for grooves, scoring, or corrosion before installing a new seal. A worn shaft will destroy even the best shaft seal within weeks.
Not every application needs the same shaft seal design. Here is a quick guide to common types:
Single-Lip Seals: The standard design for lubricant retention in clean environments. Cost-effective and widely available.
Double-Lip Seals: Add a second lip on the air side to exclude dust and contaminants. Preferred for dirty environments like construction or mining equipment.
Spring-Energized Seals: Incorporate a garter spring to maintain lip contact as the seal wears. Essential for applications with pressure fluctuations or where consistent sealing force is critical.
V-Rings: Mount directly on the shaft and seal against a stationary counterface. Ideal for space-constrained applications or as a secondary barrier.
PTFE Seals: Low friction, wide temperature range, and outstanding chemical resistance. Required for high-speed or chemically aggressive applications where rubber seals fail.
Most shaft seal failures can be traced to one of these root causes. Understanding them helps you prevent problems before they start:
| Failure Symptom | Most Likely Cause | How to Prevent |
|---|---|---|
| Leakage at the shaft interface | Worn shaft surface, wrong material, or low radial load | Measure shaft finish; verify material compatibility; ensure garter spring is present |
| Hard, cracked seal lip | High-temperature operation or ozone attack | Switch to FKM for heat; ensure proper storage before installation |
| Soft, swollen lip | Chemical incompatibility with fluid | Verify fluid chemistry; choose compatible material (PTFE for aggressive chemicals) |
| Asymmetric wear pattern | Shaft misalignment or excessive runout | Check alignment during installation; measure shaft runout (<0.3 mm typical) |
| Abrasive wear (gritty feel) | Contaminants in fluid or environment | Install double-lip seal; add filtration to hydraulic system |
Regular inspection matters. Check your shaft seal during routine maintenance for signs of wear, hardening, cracking, or swelling. Replace at the first sign of degradation—it is far cheaper than repairing a system damaged by fluid loss or contamination.
Proper installation doubles seal life. Follow these steps every time:
Inspect the shaft: Check for burrs, nicks, or grooves. A damaged shaft destroys new seals rapidly.
Clean everything: Contaminants trapped behind the seal lip will abrade the shaft immediately upon startup.
Lubricate before assembly: Apply a thin film of compatible fluid to the seal lip and shaft surface.
Use proper tools: Never hammer a seal into place. Use a seal driver that contacts the metal case, not the rubber lip.
Check alignment: The seal must be concentric and perpendicular to the shaft. Misalignment causes uneven wear and premature failure.
Installation damage is a leading cause of shaft seal failure. Taking an extra five minutes to do it right can add years to seal life.
Before contacting any supplier, document these specifications:
[ ] Shaft diameter (nominal and tolerance)
[ ] Housing bore diameter
[ ] Seal width
[ ] Maximum operating temperature (continuous and peak)
[ ] Minimum operating temperature
[ ] Shaft surface speed (m/s, calculated from RPM and diameter)
[ ] System pressure (static and dynamic)
[ ] Fluid type (hydraulic oil, grease, fuel, water, chemical)
[ ] Environmental contaminants (dust, water spray, mud, chemicals)
[ ] Shaft surface finish (Ra value in μm or μin)
[ ] Shaft material and hardness
Having this information ready when you request a quote will accelerate the selection process and ensure you receive a shaft seal that works in your specific application.
A shaft seal often costs less than one hour of unplanned downtime. Choosing the right one—matching material to fluid, design to speed, and size to your housing—protects your equipment, extends service intervals, and reduces total operating costs.
