In the world of industrial machinery, automotive systems, and even everyday appliances, there's a small, circular component that plays an outsized role in reliability: the rubber O-ring. These simple yet vital rings are the first line of defense against leaks, pressure loss, and contamination. But with so many materials and applications, selecting the right O-ring can be daunting. This guide cuts through the complexity, offering a clear, practical overview of what rubber O-rings are, how they work, and where they're used, helping you make informed decisions for your projects.
Universal Seal: Rubber O-rings are toroidal (doughnut-shaped) seals that prevent the leakage of fluids and gases in both static and dynamic applications.
Material Dictates Performance: The choice of material—NBR for oil, FKM for heat/chemicals, EPDM for steam/weather, VMQ for extreme temps—is critical for longevity.
Wide-Ranging Applications: From hydraulic cylinders and fuel injectors to plumbing and medical devices, O-rings are ubiquitous across industries.
Selection Simplified: Choosing the right O-ring hinges on three factors: the media being sealed, operating temperature, and pressure conditions.
Quality Matters: A well-manufactured O-ring with precise dimensions and consistent material properties is essential to prevent costly downtime.

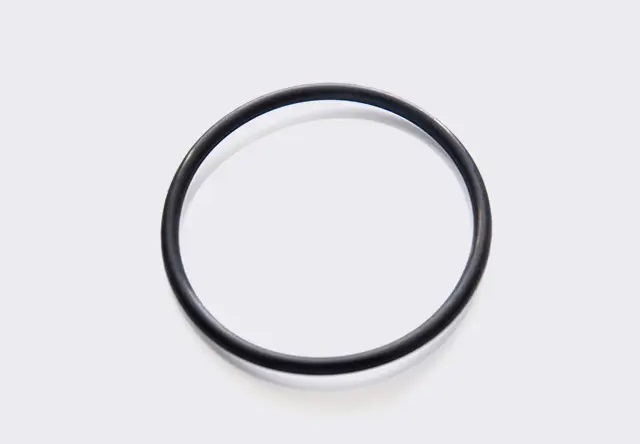

A rubber O-ring is a circular sealing gasket with a round cross-section, designed to be seated in a groove and compressed between two or more parts. This compression creates a barrier that blocks the passage of liquids or gases. They are primarily used for:
Static Sealing: Between stationary parts like flanges, pipe fittings, or housing covers.
Dynamic Sealing: In applications involving reciprocating (back-and-forth) or rotating motion, such as hydraulic pistons or pump shafts.
Their effectiveness stems from their elasticity—the ability to deform under pressure and return to their original shape, maintaining a tight seal even as surfaces move or wear.
Not all rubber is created equal. The material of an O-ring determines its resistance to temperature, chemicals, and wear. The table below outlines the most common types and their ideal applications.
| Material (Abbr.) | Key Characteristics | Typical Applications |
|---|---|---|
| Nitrile (NBR) | Excellent resistance to oils, fuels, and hydraulic fluids. Cost-effective and widely used. | Automotive engines, fuel systems, hydraulic equipment. |
| Fluorocarbon (FKM/Viton) | High temperature and chemical resistance. Suitable for harsh environments. | Chemical processing, high-temperature engine bays, aerospace. |
| Silicone (VMQ) | Excellent high and low-temperature flexibility. Often used in food-grade and medical applications. | Medical devices, food processing equipment, appliances. |
| EPDM | Superior resistance to water, steam, ozone, and weathering. Not suitable for petroleum oils. | Cooling systems, outdoor electrical enclosures, plumbing. |
O-rings are fundamental components in virtually every sector of engineering and manufacturing. Here are some of their most common uses:
Hydraulic & Pneumatic Systems: Sealing cylinders, valves, and pumps to maintain pressure and prevent fluid leakage.
Automotive Industry: Found in engines (fuel injectors, oil seals), transmissions, braking systems, and air conditioning units.
Plumbing & Fluid Handling: Ensuring watertight seals in faucets, valves, filters, and pipe connections.
Industrial Machinery: Protecting bearings, gears, and rotating shafts from lubricant loss and contaminant ingress.
Medical & Food Equipment: Silicone O-rings are common in sterile environments due to their non-toxic and inert properties.
Choosing the correct O-ring is a three-step process to avoid premature failure:
Identify the Media: What fluid or gas will it contact? (e.g., oil, water, chemical, steam). This dictates the material.
Determine the Temperature Range: Ensure the material can withstand both the minimum and maximum operating temperatures without hardening or degrading.
Verify Size & Hardness: The O-ring must fit the groove correctly. Standard sizes are defined by metrics like AS568 in the US or ISO 3601 internationally.
A minor defect in an O-ring can lead to major system failure. Quality manufacturing ensures dimensional accuracy and consistent material properties. Reputable manufacturers adhere to international standards (such as ISO 9001 and IATF 16949 for automotive) to guarantee that each O-ring performs reliably under specified conditions. For custom applications, working with a manufacturer that offers technical support for material selection and groove design is invaluable.
About MingYu Sealing
MingYu is an experienced manufacturer specializing in high-quality rubber seals, including a wide range of standard and custom O-rings. With IATF 16949 certification and nearly 30 years of expertise, MingYu provides reliable sealing solutions for hydraulic systems, construction machinery, and automotive applications. Their technical team assists customers in selecting the right material (NBR, FKM, VMQ, EPDM) and design for specific operating conditions, ensuring optimal performance and longevity.
Q1: What is the difference between a static and a dynamic O-ring?
A static O-ring is used between two surfaces that do not move relative to each other (e.g., a pipe flange). A dynamic O-ring is used where there is motion, such as a piston moving in a cylinder. Dynamic applications typically require more precise tolerances and wear-resistant materials.
Q2: Why did my O-ring fail prematurely?
Common causes include chemical incompatibility (swelling or cracking), exposure to temperatures outside the material's range, improper sizing leading to over-compression or twisting during installation (called "nip and twist").
Q3: Can I reuse an O-ring?
It is generally not recommended. O-rings take a "set" (permanent deformation) after being compressed. Reusing them increases the risk of leaks. Always replace with a new O-ring during maintenance.
Q4: How do I know what size O-ring I need?
You need two key measurements: the Inner Diameter (ID) and the Cross-Section (CS) (thickness). These must match the groove dimensions. Most manufacturers, including MingYu, provide size charts based on standards like AS568.
Q5: What does "rubber O rings" typically refer to in industry?
The term "rubber O rings" broadly refers to sealing rings made from various elastomers like Nitrile (NBR), Fluorocarbon (FKM), Silicone (VMQ), and EPDM. It's a general search term used by engineers and buyers looking for these essential sealing components across automotive, industrial, and hydraulic applications.
