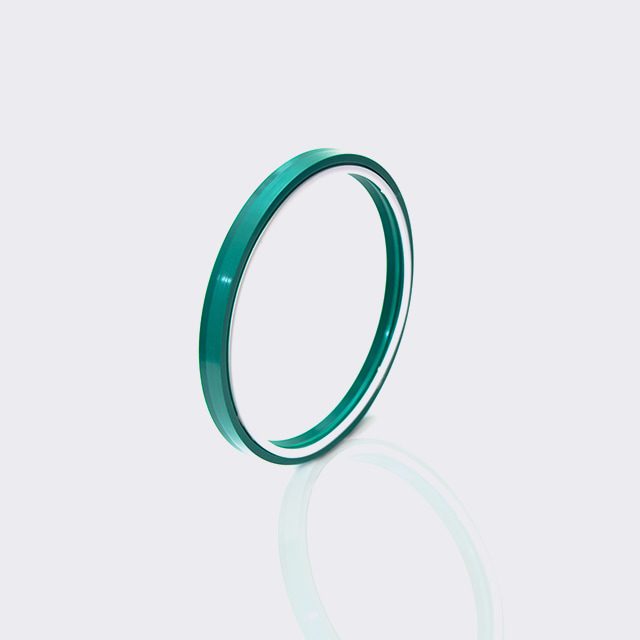

MBD Piston Rod Seal

The MBD piston rod seal is an advanced lip seal with two sealing lips and an extrusion-resistant backup ring. It maintains extra lubrication to prevent dry friction and wear, extending the seal's lifespan. In some cases, it can replace expensive series seals, providing effective sealing even when rubber or fabric-reinforced rubber falls short. It is mainly used for sealing piston rods and plungers in heavy-duty machinery and static pressure systems.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Specifications

Application Scenario

Ordering Information

Core Feature

● Excellent Wear Resistance

Withstands long-term friction, extending service life.

● Strong Impact Resistance

Stable under high load and sudden pressure.

● Outstanding Extrusion Resistance

Prevents seal extrusion in high-pressure environments.

● Low Compression Deformation

Maintains good sealing performance over time.

● Suitable for Harsh Conditions

Works well in extreme temperatures, pressures, and complex media.

● Superior Self-Lubrication

Reduces friction by using pressure medium lubrication.

● Improved Sealing at Zero Pressure

Reliable sealing even during low pressure or downtime.

● Effective Barrier Against External Air

Prevents contaminants from entering the system.

● Easy Installation

Simplified design for quick installation and reduced maintenance time.

Material composition

Polyurethane(PU),Nitrile Rubber (NBR), PA (Polyamide) and Polytetrafluoroethylene (PTFE)

● Working pressure: ≤50 MPa;

● Working temperature: -30 to +100°C;

● Reciprocating speed: ≤0.5 m/s;

● Working medium: Hydraulic oil (mineral oil-based).

Construction Machinery

High sealing demand for piston rods under heavy load and pressure.

Application

Hydraulic Systems

Ensures stable operation of hydraulic cylinders.

Application

Automation Equipment

Seals for hydraulic or pneumatic systems in robots and production lines.

Application

Agricultural Machinery

Seals that maintain performance in challenging environments.

Application

MBD Piston Rod Seal is identified using an order number.

Example: MBD-7085 PU

● Order Part Number：MBD

● Rod Diameter and Groove Diameter：7085

● Material：PU

(Special specifications can be customized according to customer requirements.)

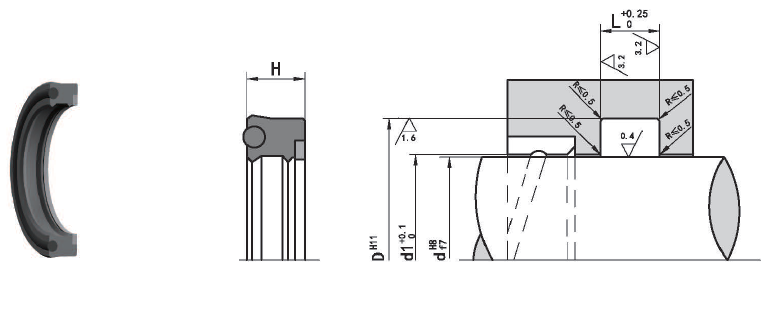

Structure Display

Product Description

Technical Specifications

Application Scenario

Ordering Information
